Ada robotic hand V1.1

End effector

Five-actuator robotic development hand with a flexible printed palm, rigid covers and separate Almond controller and Artichoke firmware sources. [1] [2] [3] [4] [5]

Build & first use →Official websiteUpstream build guideBill of materials

For
Builders evaluating a sourced mechanical design and its integration requirements. [1]
Cost
No current cost yet. Upstream bill of materials [3]
Source rights
Named licenses are documented by part. Review licenses
Unknowns
host computer, tools, operating system not fully established. Review gaps

Source researched · Not tested by us
Sources checked · Research details

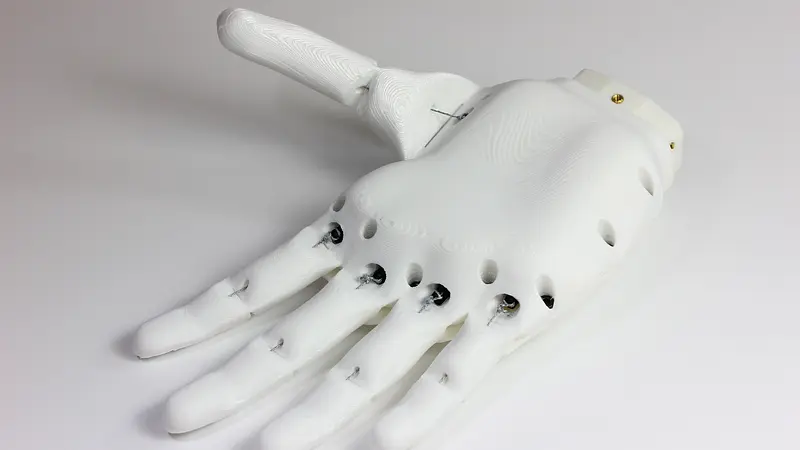

Photograph of the assembled Ada hand from Open Bionics’ project gallery. The interactive preview below shows only the palm-and-fingers component.
Photograph of the assembled Ada hand from Open Bionics’ project gallery. The interactive preview below shows only the palm-and-fingers component. Open Bionics · CC-BY-SA-4.0. Reproduced unchanged; displayed responsively.
Licenses & related hardware

Research details and dates

On this page

Overview

Ada is a robotic development hand whose flexible palm and fingers are printed as one component. The V1.1 repository supplies left- and right-hand STL sets and editable Blender files. Choose one side before collecting its palm, back cover and two controller trays; the preview here shows only the right palm-and-fingers component. Motors and electronics are separate. Upstream explicitly describes Ada as a development kit, not a medical device. [1] [2] [3] [7]

Is this for you?

Known limitations
  • Legacy assembly/tutorial links fail; matched tendon routing and calibration remain unresolved.
  • Almond BOM may be incomplete; current actuator availability and complete delivered cost not verified.
  • No cobot or delta mounting/control qualification.

Editorial classification; not physical qualification.

[1] [2] [3] · Editorial assessment

3D preview

Ada V1.1 right palm and fingers. Single flexible palm-and-fingers component; excludes actuators, electronics, trays and back cover.

The 3D preview loads after the page.

Drag to orbit · Scroll or pinch to zoom · Right-drag to pan. Use the view buttons for front, side and top views. The tree shows names supplied by the source; unnamed bodies remain labeled as such.

Download original STL · File checksums and provenance

This model contains one geometric body.

Source, license and scale

Source: Open Bionics, revision 2dbf3cc6c5df112066f12c11af1d001e319a766f. Original and preview: CC-BY-SA-4.0. Preview conversion by Open Source Robotics; original file unchanged. Preview coordinates are centered and rounded to six decimal places. STL does not declare units; confirm dimensions against the project design. No physical part tested.

Viewer: three-cad-viewer 5.0.7 (MIT license). Confirm scale and manufacturing settings before printing.

Hardware & parts

Upstream bill of materials [3]

Hardware configuration

Five-finger robotic development hand

[1]

Actuators
  • Five Firgelli PQ12-30-12-P linear actuators in the historical component list.

[3]

Controller

Almond V1.2 with ATmega2560; draft BOM needs reconciliation.

[2] [4]

Power

12 V operation reported in May 2016 datasheet.

[2]

Degrees of freedom

5

[2]

Assembly & first use

Open the upstream getting-started guide [1]

Assembly

Separate flexible palm and rigid covers/trays; complete legacy assembly guide not recovered in this review.

[2] [6]

Cost

No current, complete configuration-specific build cost has been established for this profile.

Project notes

Flexible fingers, rigid electronics housing

The datasheet specifies NinjaFlex for the palm and PLA or ABS for the back cover and controller trays. Substituting one rigid material for every part would therefore depart from the documented design. The manufacturer's component list calls for five PQ12-30-12-P linear actuators, an Almond board, tendon string, threaded inserts, screws and fingertip grips. That historical list identifies a configuration, not current stock or a delivered quote. Confirm actuator availability and the required feedback variant before pricing a build. [2] [3]

The May 2016 datasheet reports five degrees of freedom and 12 V operation, and includes a dimensioned wrist interface with four M3 fasteners. A drawing is useful for designing a mount, but it does not establish a cobot or delta interface. The interactive model shows geometry only; it does not establish print quality or grip performance. The separate photograph shows an upstream assembled hand and is not independently version-dated. [2]

Reconcile the controller before assembling

The hand datasheet names Almond V1.2. Its separate repository includes the board and schematic, but the maintainer warns that the later-uploaded BOM may be incorrect or incomplete. Reconcile that draft list with the board revision before fabrication or component orders. Artichoke V1.2 is the corresponding firmware family for Almond and requires FingerLib; its README documents 38,400-baud serial control and a command-help prompt. A matched firmware/dependency build was not verified here. [2] [4] [5] [8]

The older assembly and firmware tutorial links returned errors during this review. Until a complete guide is recovered, tendon routing, tensioning and calibration remain build gaps rather than verified instructions. No current kit availability, complete setup cost or physical test is claimed. [6]

The design repository, datasheet, Almond README and Artichoke README declare CC-BY-SA-4.0. Those grants do not make the purchased actuators open manufacturing designs. [1] [2] [4] [5]

What we checked

Source review only. No assembly, procurement, control bringup or physical performance testing.

Not yet established

  • Requirements: operating system, host computer, tools
  • A step-by-step setup summary

Updates

Upstream last updated
Not established
Latest release
Not established
Profile updated
Oct 4, 2026
Sources last checked
Sep 30, 2026
Next review
Oct 30, 2026
Reviewed revision
2dbf3cc

Source files and licenses

Mechanical design files are licensed; purchased components, source completeness and a working matched configuration remain separate checks.

LayerAvailability / license
mechanical designavailable · CC-BY-SA-4.0
First-party repository files; no manufacturing source for purchased components inferred. [1] [2]
electronicsavailable · CC-BY-SA-4.0
Separate upstream repository; matching build and dependencies not tested. Almond BOM is explicitly draft and potentially incomplete. [4] [8]
firmwareavailable · CC-BY-SA-4.0
Separate upstream repository; matching build and dependencies not tested. Artichoke requires FingerLib; matched compilation not verified. [5]
softwarenot found · License not fully assessed
Complete revision-matched source for this layer was not established in this mechanical repository; external host components require separate assessment. [1]
documentationavailable · CC-BY-SA-4.0
First-party repository files; no manufacturing source for purchased components inferred. [1] [2]

No learned model or dataset selected for this mechanical configuration.
