OpenParallelGripper — XL330 version

End effector

Parallel-jaw gripper for the LITE 6 using a Dynamixel XL330 servo, printed housings, machined claws and OpenRB control examples with a serial-rate mismatch to resolve. [2] [3] [5] [6] [7]

Build & first use →Official websiteUpstream build guideBill of materials

For
Builders able to inspect CAD, source parts and reconcile control integration. [1]
Cost
No current cost yet. Upstream bill of materials [3]
Source rights
Named licenses are documented by part. Review licenses
Unknowns
host computer, tools, operating system not fully established. Review gaps

Source researched · Not tested by us
Sources checked · Research details

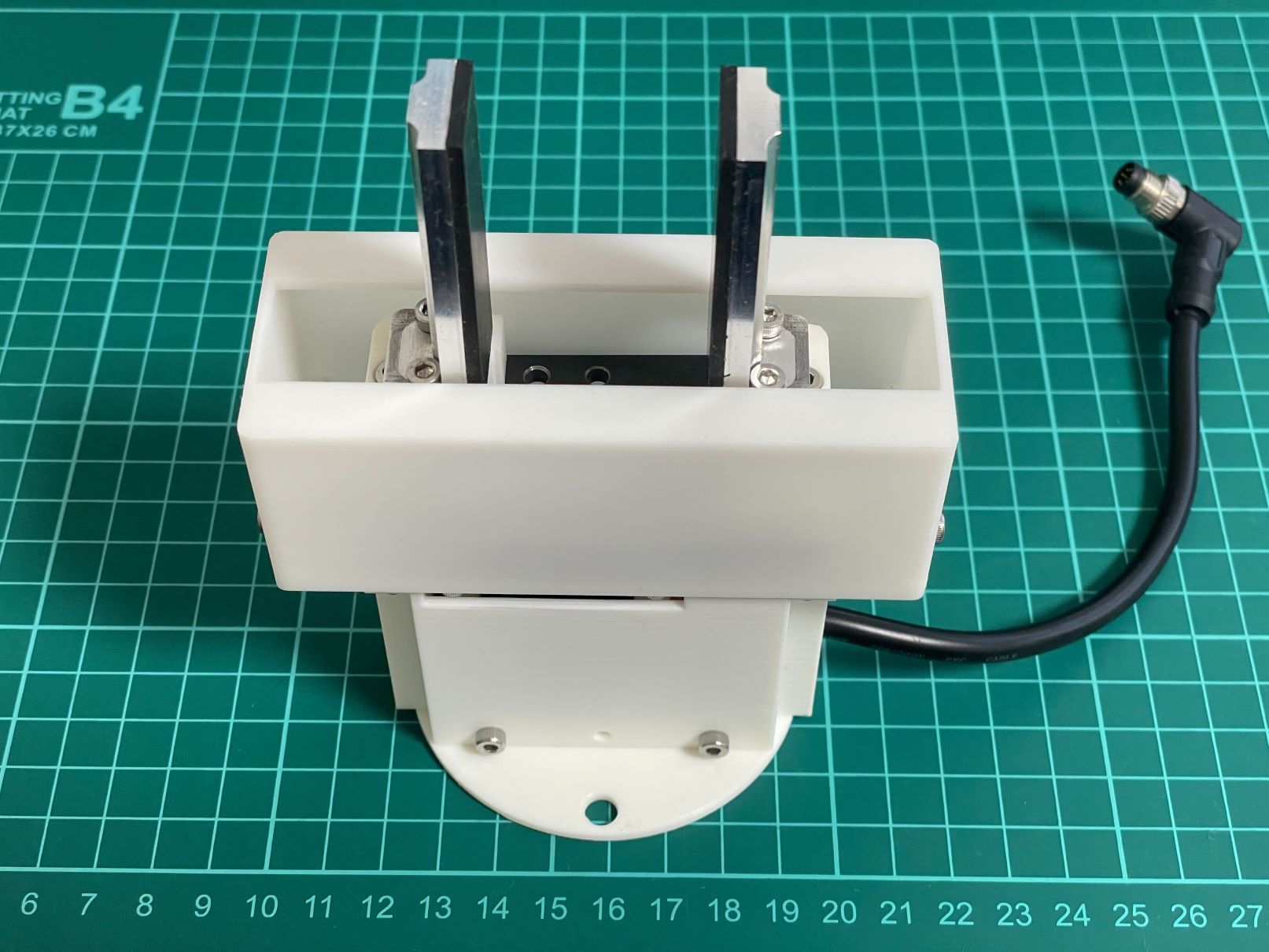

Upstream photograph of the XL330-version OpenParallelGripper, with metal claws and its tool cable. This is the maintainer’s build, not hardware tested by us.
Upstream photograph of the XL330-version OpenParallelGripper, with metal claws and its tool cable. This is the maintainer’s build, not hardware tested by us. hygradme · MIT. Reproduced unchanged; displayed responsively.
Licenses & related hardware

Requirements · Research details and dates

On this page

Overview

OpenParallelGripper has two actuator-specific designs. This profile covers the Dynamixel XL330-M288-T version for UFACTORY LITE 6, not the heavier SCS3045M version. The maintainer reports 0–65 mm stroke and about 270 g for XL330, and describes its thinner structure as a tradeoff against rigidity. Those are upstream reports, not measurements from our build. [1] [2]

The photograph shows the maintainer’s XL330-version build, with a white housing, metal claws and attached tool cable. It is separate from the interactive assembly model and is not hardware tested by us. [9]

Is this for you?

Known limitations
  • Assembly guide unavailable; electronics and software explicitly under development.
  • Firmware uses 57600 baud; Python Modbus example requests 115200.
  • Metal gear fabrication and aluminum claws required by recommended configuration; costs and physical performance unverified.

Editorial synthesis of inspected sources; not physical qualification.

[2] [3] [4] [6] [7] · Editorial assessment

3D preview

OpenParallelGripper XL330 assembly. XL330-version assembly geometry, including purchased-component representations. The LITE 6 arm and a verified powered setup are not included.

The 3D preview loads after the page.

Drag to orbit · Scroll or pinch to zoom · Right-drag to pan. Use the view buttons for front, side and top views. The tree shows names supplied by the source; unnamed bodies remain labeled as such.

Download original STEP · File checksums and provenance

Separate bodies can be inspected in the model tree. Explode is a viewing aid, not an assembly sequence.

Source, license and scale

Source: hygradme, revision 659f8fa6a5ec498c10ee06df4e0bfafdb04946e6. Original and preview: MIT. Preview conversion by Open Source Robotics; original file unchanged. Preview coordinates are centered and rounded to six decimal places. STEP preview triangulated in millimetres. No physical part tested.

Viewer: three-cad-viewer 5.0.7 (MIT license). Confirm scale and manufacturing settings before printing.

What you need

Dependencies
  • Dynamixel2Arduino
  • modbus-esp8266
  • xArm Python SDK

[5]

Hardware & parts

Upstream bill of materials [3]

Hardware configuration

Rack-driven parallel gripper for LITE 6

Editorial synthesis of inspected sources; not physical qualification.

[1] [3] [9] · Editorial assessment

Actuators
  • One Dynamixel XL330-M288-T.

[3]

Controller

OpenRB-150 with RS485-to-TTL interface; development-stage wiring.

[3] [4]

Assembly & first use

Open the upstream getting-started guide [3] · Project documentation [1]

Assembly

No step-by-step assembly guide; BOM separates printed parts, metal gear, aluminum claws and purchased rail/racks.

[2] [3]

Calibration

Resolve firmware/Python serial-rate mismatch; verify servo ID and motion limits for the assembled mechanism.

Editorial synthesis of inspected sources; not physical qualification.

[6] [7] · Editorial assessment

Cost

No current, complete configuration-specific build cost has been established for this profile.

Project notes

Plan for machined and purchased parts

The XL330 BOM separates printed housings and adapters from an aluminum claw pair, a purchased rail and two racks. It strongly recommends metal printing for the 20-tooth gear and says the author used SLM. The design therefore is not an all-plastic desktop print: price metal fabrication, the XL330 servo, the SSE2B6-100 rail, two RGEAL0.8KA-55-A5-B10-C10-D10 racks, fasteners and electronics separately. The BOM lists quantities but no current delivered total. [3]

The linked claw STEP path in the BOM omits the stp directory; the preserved file is XL330_version/hardware/cnc_miling_parts/stp/Claw_50mm.step. An assembly STEP and individual STEP/STL files are present. The project README still says the assembly instructions are not available, so use the model and BOM to plan fit checks rather than assuming a complete assembly sequence exists. [2] [3] [9]

Reconcile the serial settings before commissioning

The documented control choices are two LITE 6 tool digital inputs for open/close, or Modbus-RTU over RS485 for intermediate positions. The reference electronics use OpenRB-150 and an RS485-to-TTL module, with soldering and a crossed Grove TX/RX connection. The electronics guide warns that connections may be unstable; it also retains an ATOM Lite/debug-board sentence despite describing OpenRB-150 elsewhere. Check the XL330 wiring diagram against the selected board instead of combining the two versions' instructions. [4] [5]

There is a concrete mismatch in the pinned Modbus examples: the OpenRB sketch initializes Serial2 at 57,600 baud, while the Python example actively requests 115,200. These must agree before the pair can communicate. The sketch uses servo ID 1 and example targets of 0 and 250 degrees; reconcile those limits with the assembled mechanism before enabling motion. The software README lists Dynamixel2Arduino, modbus-esp8266 and the xArm Python SDK, but a matched dependency build and hardware calibration have not been verified here. [5] [6] [7]

The MIT-licensed repository includes mechanical files, wiring documentation and example control source. That does not make the purchased servo and boards open manufacturing designs. The LITE 6 documentation supports a platform-interface tag; the README's suggestion that other cobots might work is not evidence of Universal Robots or delta compatibility. No physical assembly, gripping performance or safety certification is claimed. [1] [4] [8]

What we checked

Source and geometry review only. No procurement, assembly, firmware build, calibration or physical performance testing.

Not yet established

  • Requirements: operating system, host computer, tools
  • A step-by-step setup summary

Updates

Upstream last updated
Not established
Latest release
Not established
Profile updated
Sep 30, 2026
Sources last checked
Sep 30, 2026
Next review
Oct 30, 2026
Reviewed revision
659f8fa

Source files and licenses

Licensed first-party mechanical design and documentation; purchased components and a matched working build remain separate checks.

LayerAvailability / license
mechanical designavailable · MIT
First-party project files under root license; vendor artifacts and purchased-component manufacturing not included in this grant assessment. [8] [9]
electronicsavailable · MIT
Wiring documentation for purchased boards; board manufacturing sources not established. [4] [8]
firmwareavailable · MIT
Example source only; external dependencies not fully preserved or compiled; serial-rate mismatch unresolved upstream. [6] [8]
softwareavailable · MIT
Example source only; external dependencies not fully preserved or compiled; serial-rate mismatch unresolved upstream. [7] [8]
documentationavailable · MIT
First-party project files under root license; vendor artifacts and purchased-component manufacturing not included in this grant assessment. [8] [9]

No learned model or dataset required by the documented mechanical design.
