Rhino V2 adaptive gripper

End effector

Underactuated two-finger gripper with DM4310 actuation, assembly CAD and a mixed fabrication BOM; control licensing is unresolved. [1] [3] [4]

Build & first use →Official websiteUpstream build guideBill of materials

For
Builders able to fabricate and integrate a custom gripper. [1]
Cost
No current cost yet. Upstream bill of materials [2]
Source rights
Some licenses are unresolved. Review licenses
Unknowns
tools not fully established. Review gaps

Source researched · Not tested by us
Sources checked · Research details

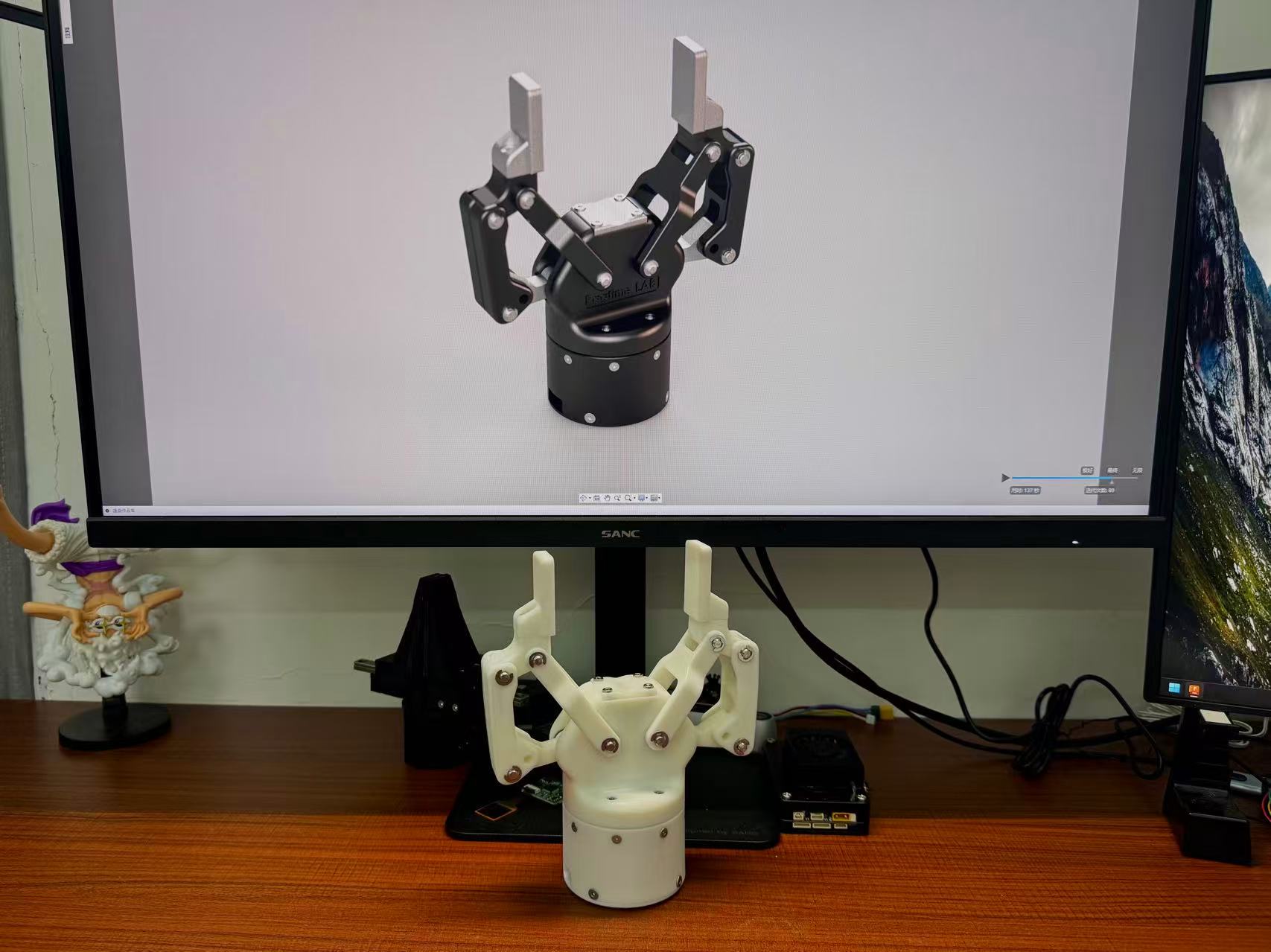

Upstream photograph of a Rhino V2 build, with its CAD design visible on the monitor. This is the maintainer’s build, not a build tested by us.
Upstream photograph of a Rhino V2 build, with its CAD design visible on the monitor. This is the maintainer’s build, not a build tested by us. Ragtime-LAB / wEch1ng and contributors · GPL-3.0. Reproduced unchanged; displayed responsively.
Licenses & related hardware
License
GPL-3.0 · license not fully assessed for software · Details by part

Requirements · Research details and dates

On this page

Overview

Rhino V2 is a two-finger adaptive gripper for builders who can combine printed parts with machining and sheet-metal work. Its repository provides SolidWorks 2025 files, an assembly STEP and a mechanical BOM around a DAMIAO DM4310 motor. The preview shows the upstream assembly geometry, including purchased-component representations. It does not establish their manufacturing source or a finished working build. [1] [2]

Is this for you?

Known limitations
  • Detailed assembly tutorial and some fastener quantities are incomplete.
  • Stroke, force and mass are not specified; robot mounting is not verified.
  • Root GPL and control-directory learning/research-only notice conflict.

Editorial classification; no physical qualification.

[1] [2] [3] · Editorial assessment

3D preview

Rhino V2 gripper assembly. Assembly geometry; purchased components are represented, not separately source-qualified.

The 3D preview loads after the page.

Drag to orbit · Scroll or pinch to zoom · Right-drag to pan. Use the view buttons for front, side and top views. The tree shows names supplied by the source; unnamed bodies remain labeled as such.

Download original STEP · File checksums and provenance

Separate bodies can be inspected in the model tree. Explode is a viewing aid, not an assembly sequence.

Source, license and scale

Source: Ragtime-LAB, revision 099a3cde0b35ee1f2a6a49e97a60686d2dcaaa3f. Original and preview: GPL-3.0. Preview conversion by Open Source Robotics; original file unchanged. Preview coordinates are centered and rounded to six decimal places. STEP preview triangulated in millimetres. No physical part tested.

Viewer: three-cad-viewer 5.0.7 (MIT license). Confirm scale and manufacturing settings before printing.

What you need

Operating system
  • Linux; upstream recommends Ubuntu 18.04 or later.

Documented control environment, not independently tested.

[3]

Host computer

Linux computer with Python 3.8 or later, USB-CAN adapter and sensor serial interface for the documented control route.

No minimum CPU/RAM verified.

[3]

Hardware & parts

Upstream bill of materials [2]

Hardware configuration

Underactuated two-finger gripper

[1]

Actuators
  • DAMIAO DM4310 motor

[1]

Controller

Linux Python control programs with DM-FDCAN USB-CAN; licensing conflict unresolved.

[3]

Sensors
  • Reference 6×6 UART pressure array; integration and calibration not verified.

[3]

Power

24 V DC motor supply required by control README.

[3]

Assembly & first use

Open the upstream getting-started guide [1]

Assembly

Mechanical BOM and CAD available; detailed assembly tutorial still forthcoming.

[1] [2]

Cost

No current, complete configuration-specific build cost has been established for this profile.

Project notes

Plan fabrication before ordering the motor

The BOM names a CNC rotor-to-leadscrew transmission part, a custom leadscrew and nut, and four nut-linkage pieces. Its note recommends 304 stainless sheet for the latter because strength may otherwise be insufficient. The bottom cover permits PETG printing or CNC fabrication and discourages resin printing because of heat-set insert retention. The list also specifies MF85ZZ and MF128ZZ flanged bearings, grooved pins and torsion springs. Several screw entries lack quantities, and the detailed assembly tutorial is still marked as forthcoming. Reconcile fastener counts and fits against the CAD before placing a complete order. [1] [2]

The README leaves gripping stroke, maximum gripping force and mass unfilled. It describes inspiration from Robotiq 2F-85, which does not establish interchangeable mounts, performance or control interfaces. A cobot or delta adaptation would need its own mounting and integration evidence. No configuration-specific current build total is verified. [1]

The control package needs a separate decision

The documented control route uses Linux, Python 3.8 or later, a DM-FDCAN USB-CAN adapter and 24 V motor power. It also describes a reference 6×6 pressure-sensor array over UART for force feedback. The README places the power adapter in an optional list while requiring 24 V at the motor; provide a suitable motor supply even if a particular adapter is unnecessary. Adapter serial number, CAN IDs and sensor port are configuration values to replace, not settings to copy from the example. [3]

The control directory includes Python programs and precompiled USB-CAN libraries. Their complete build source was not established in this review. More importantly, its license section says the project is for learning and research only, while the root README and GPL-3.0 license state broader reuse terms. This profile therefore covers the mechanical design under the root grant and leaves the control package's reuse scope unresolved. Clarify that conflict before relying on the bundled software for redistribution or commercial integration. [1] [3] [4]

No physical assembly, powered control or gripping test was performed for this profile. [4]

What we checked

Source research only; no hardware build, procurement, calibration or performance testing.

Not yet established

  • Requirements: tools
  • A step-by-step setup summary

Updates

Upstream last updated
Not established
Latest release
Not established
Profile updated
Sep 30, 2026
Sources last checked
Sep 30, 2026
Next review
Oct 30, 2026
Reviewed revision
099a3cd

Source files and licenses

Licensed mechanical design with purchased components and unresolved integration requirements. Control-subdirectory license notice conflicts with root GPL; no blanket software reuse grant is asserted.

LayerAvailability / license
mechanical designavailable · GPL-3.0
Mechanical files and root documentation under repository GPL. Purchased parts are not separately source-qualified. [1] [4]
electronicsnot found · License not fully assessed
A complete revision-matched source set for this layer was not established in the inspected repository; this is not a claim that external components are closed. [1] [3]
firmwarenot found · License not fully assessed
A complete revision-matched source set for this layer was not established in the inspected repository; this is not a claim that external components are closed. [1] [3]
softwareavailable · License not fully assessed
Python control files are available, but the control README limits use to learning/research despite root GPL terms. Precompiled USB-CAN libraries also leave source completeness unresolved. [1] [3] [4]
documentationavailable · GPL-3.0
Root mechanical documentation carries GPL terms; the control README contains a conflicting learning/research-only notice, so its reuse scope remains unresolved. [1] [3] [4]

No learned policy or dataset selected for this mechanical configuration.
