YUBI gripper

End effector

DYNAMIXEL-driven two-finger gripper with a camera, assembly CAD and robot-specific mounting parts. [1]

Build & first use →Official websiteUpstream build guideBill of materials

For
Robotics researchers evaluating the gripper and its mounting options. [1]
Cost
No current cost yet. Upstream bill of materials [2]
Source rights
Named licenses are documented by part. Review licenses
Unknowns
host computer, tools, operating system not fully established. Review gaps

Source researched · Not tested by us
Sources checked · Research details

Upstream photograph with overlays of YUBI’s stationary data-collection rig and handheld interface. This shows the wider system; the interactive model below is the robot-mounted gripper.
Upstream photograph with overlays of YUBI’s stationary data-collection rig and handheld interface. This shows the wider system; the interactive model below is the robot-mounted gripper. Toyota Motor Corporation · CERN-OHL-W-2.0. Reproduced unchanged; displayed responsively. Preview re-encoded for faster display; the link opens the original file.
Licenses & related hardware

Research details and dates

On this page

Overview

YUBI separates the robot-mounted gripper from its operator glove and data-collection rigs. This profile covers the DYNAMIXEL gripper: the hardware repository supplies an assembly STEP, individual parts, a parts list and an assembly guide. The preview shows the upstream assembly geometry, including representations of purchased components; it is not proof that those components have open manufacturing designs. [1] [2]

Is this for you?

Known limitations
  • Upper-plate insert part number differs between guide and BOM.
  • Robot-side control/power configuration and complete current budget remain unresolved.

Editorial classification from cited source; no measured performance.

[1] [2] [3] · Editorial assessment

3D preview

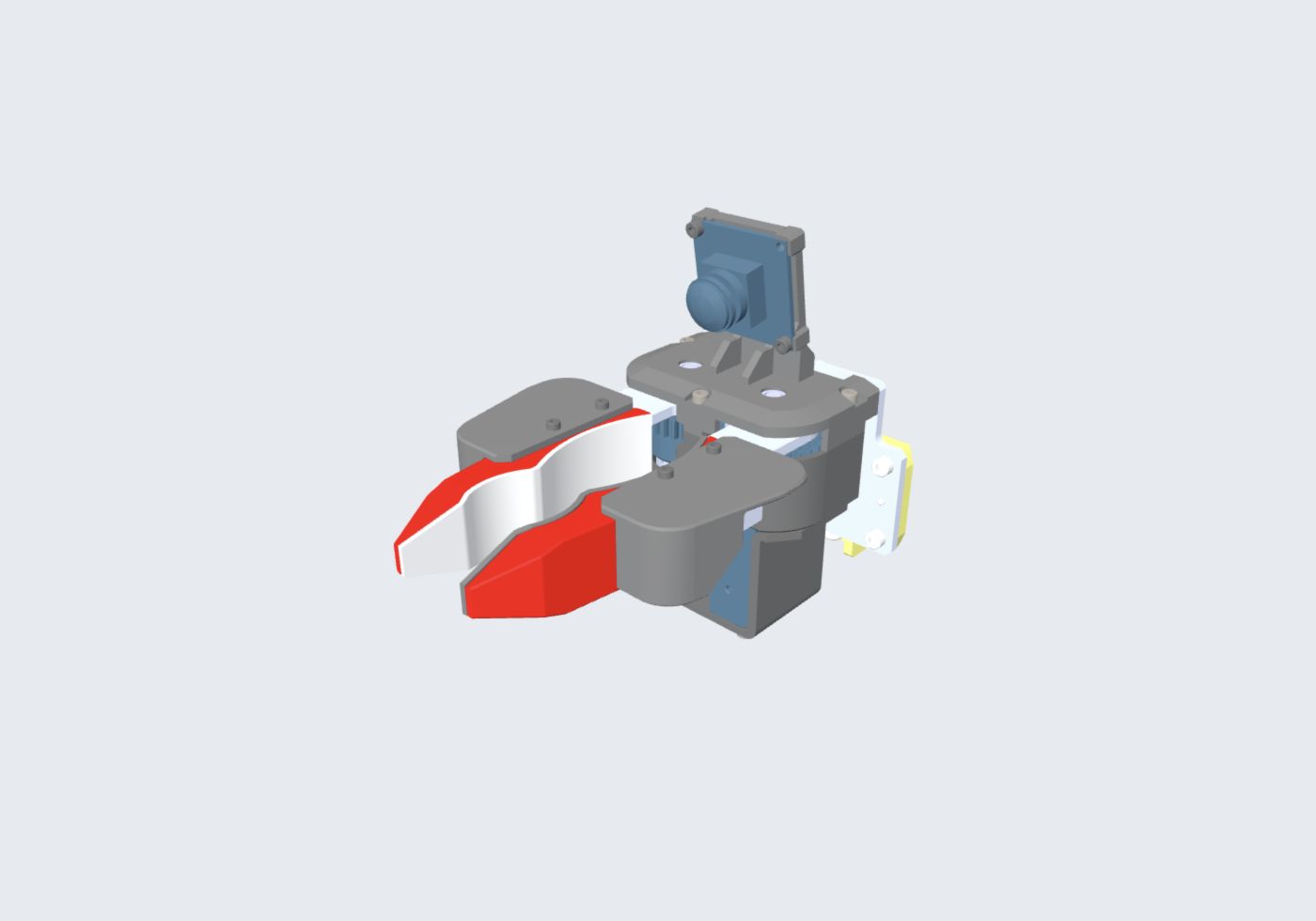

YUBI gripper assembly. Assembly geometry from the upstream STEP; purchased components are represented, not separately source-qualified.

The 3D preview loads after the page.

Drag to orbit · Scroll or pinch to zoom · Right-drag to pan. Use the view buttons for front, side and top views. The tree shows names supplied by the source; unnamed bodies remain labeled as such.

Download original STEP · File checksums and provenance

Separate bodies can be inspected in the model tree. Explode is a viewing aid, not an assembly sequence.

Source, license and scale

Source: Toyota Motor Corporation, revision dd8bd13d2fd8e5003057243576f88be333d95fc5. Original and preview: CERN-OHL-W-2.0. Preview conversion by Open Source Robotics; original file unchanged. Preview coordinates are centered and rounded to six decimal places. STEP preview triangulated in millimetres. No physical part tested.

Viewer: three-cad-viewer 5.0.7 (MIT license). Confirm scale and manufacturing settings before printing.

Hardware & parts

Upstream bill of materials [2]

Hardware configuration

Robot-mounted two-finger gripper

[1]

Actuators
  • One DYNAMIXEL XM430-W350-R

[2]

Sensors
  • ELP-USBFHD01M-L180 USB camera

[2]

Assembly & first use

Open the upstream getting-started guide [1]

Assembly

Version-2 illustrated guide covers servo, gear train, fingers, camera and UR5e attachment.

[3]

Cost

No current, complete configuration-specific build cost has been established for this profile.

Project notes

Printed parts are only part of the build

The version-2 gripper BOM specifies one XM430-W350-R servo, an ELP-USBFHD01M-L180 camera, two spur gears, three bearings, shafts, inserts, fasteners and rubber contact sheets. The case and several other parts are PLA; the gear shaft is machined A2024 aluminum, while the two finger attachments allow machined or printed alternatives. The UR5e mounting bracket and flange are also listed as machined A2024 parts. Obtain machining and purchased-component quotes before treating the CAD download as a printable complete gripper. No current complete price is established. [2]

The assembly guide proceeds through inserts and locating pins, servo wheel and shaft, finger pads, gear train, upper plate, flaps, camera and UR5e mounting. One ordering discrepancy needs resolution: the guide names SB-304540 inserts for the upper plate, while the BOM groups four SB-304550 inserts. Confirm the intended insert against the hole geometry before ordering. [2] [3]

Choose the mount and control path separately

The current README lists Franka, OpenArm and Unitree G1 flanges; the preserved gripper BOM and assembly guide describe a UR5e configuration. Those are distinct mounting paths, not interchangeable instructions. The cobot tag records documented interface evidence, not a tested fit or a safety certification. [1] [2] [3]

The linked software repository describes operator-side bringup: encoder and camera inputs, Docker/Compose, ROS 2 and separate data-collection services. Its quick setup remains marked under construction. That README does not establish a matched robot-side XM430 control and power setup for this mechanical assembly; resolve the actuator interface, supply and travel calibration before a powered build. [6]

Toyota releases the hardware under CERN-OHL-W-2.0. Its commercial-use guide permits manufacturing and sale subject to that license and explains source and notice obligations. No hardware assembly or performance test was performed for this profile. [4] [5]

What we checked

Source research only. No physical build, procurement, calibration or performance testing.

Not yet established

  • Requirements: operating system, host computer, tools
  • A step-by-step setup summary

Updates

Upstream last updated
Not established
Latest release
Not established
Profile updated
Sep 30, 2026
Sources last checked
Sep 30, 2026
Next review
Oct 30, 2026
Reviewed revision
dd8bd13

Source files and licenses

Licensed mechanical source is available; purchased components and complete robot integration are not fully open or verified.

LayerAvailability / license
mechanical designavailable · CERN-OHL-W-2.0
Repository hardware license; purchased components retain their own rights. [1] [4]
electronicsnot found · License not fully assessed
No complete matched robot-side source set established in the inspected mechanical repository and parts list; purchased parts require separate review. This does not assert that all related code is absent. [1] [2]
firmwarenot found · License not fully assessed
No complete matched robot-side source set established in the inspected mechanical repository and parts list; purchased parts require separate review. This does not assert that all related code is absent. [1] [2]
softwarenot found · License not fully assessed
No complete matched robot-side source set established in the inspected mechanical repository and parts list; purchased parts require separate review. This does not assert that all related code is absent. The linked operator-side software README is inspected separately (S006); it does not establish matched actuator control. [1] [2] [6]
documentationavailable · CERN-OHL-W-2.0
Repository hardware license; purchased components retain their own rights. [1] [4]

Mechanical tooling profile without a selected learned controller or dataset.
